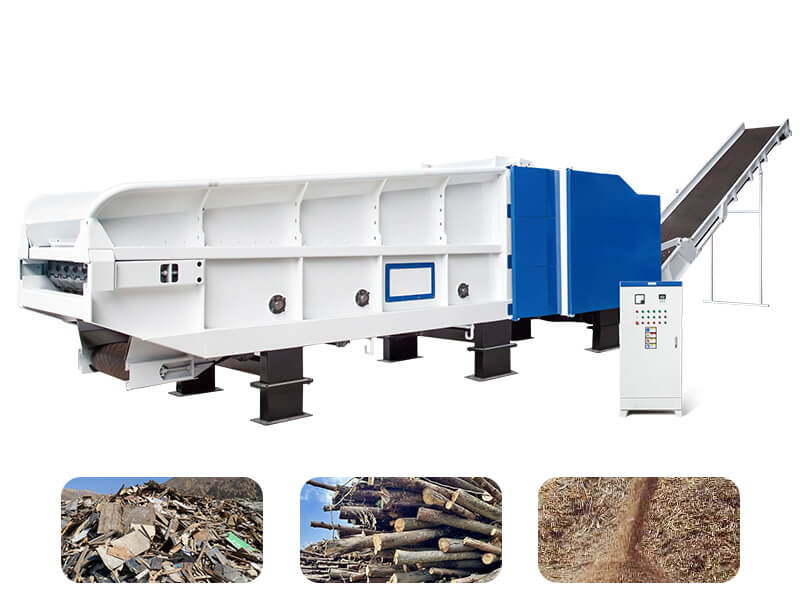

Hydraulic Crusher / Wood Chipper LDZPH1300-600
The Hydraulic Crusher LDZPH1300-600 is a reinforced heavy-duty machine designed for stable and efficient wood processing. It features an upgraded robust body, a specially designed chain plate feed conveyor with forced feeding mechanism, and a fully enclosed structure for maximum safety and easy maintenance.
Product Features
- Fully hydraulic drive
- High-output performance
- Extremely low operating and maintenance costs
- Advanced feed system
- Various chip specifications
- Fully enclosed structure for safety
Technical Specifications
| Feeding System | Chain Plate Conveyor |
|---|---|
| Feed Inlet Size | 1300×600mm |
| Power | Hydraulic motor drive |
| Chain Plate Material | 16Mn (with forced feeding teeth) |
| Cutter Roller Rotation Diameter | 800mm |
| Cutter Roller Speed | 540rpm |
| Cutter Roller Length | 1340mm |
| Number of Flying Knives | 2*3 |
| Tool Material | 65Mn |
| Production Capacity | 10-15t |
| Maximum Raw Material Diameter | ≤340mm (loose material＜500mm) |
| Main Motor Model/Power | 200kw |
* Due to the high customization available condition for the equipment, the parameters listed on this page are for reference only and the actual delivered specifications shall prevail.
